Import results from CMM Reports and incorporate the values into the ballooned drawing and inspection report.

Description

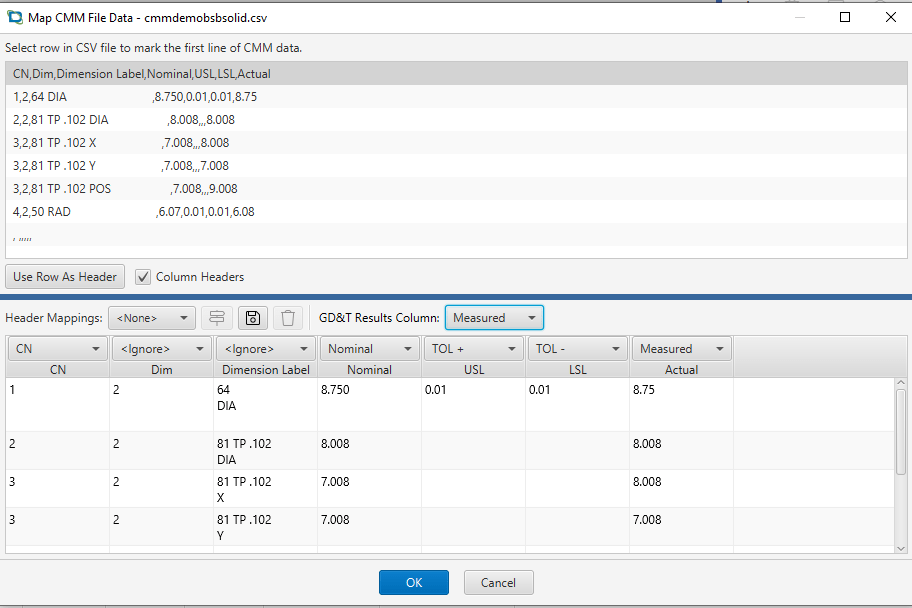

  • Import results captured in a CMM Report from common CMM programs such as PC-DMIS and Calypso.
  • Use the measurement values from the CMM Report and incorporate them into the Bill of Characteristics, without requiring any special software on the CMM machine.

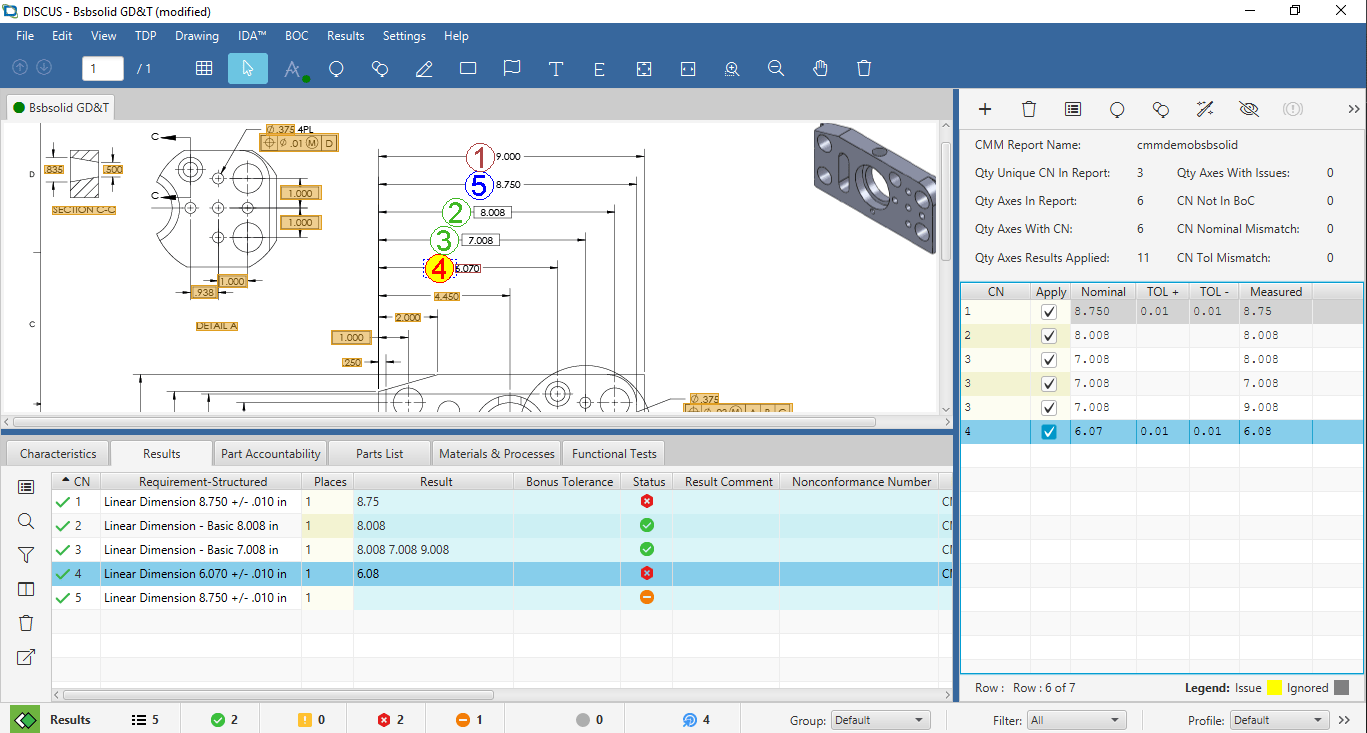

  • Reverse-engineer or “backfill” a Bill of Characteristics and ballooned drawing from the CMM Report.

Learn More>>

Benefits

  • Reduces the labor effort to import results from CMM Reports into formal inspection reports required by customers.
  • Enables the efficient creation of professional FAI reports and ballooned drawings directly from CMM Reports.
  • Automates the verification of CMM results versus characteristic requirements using the Bill of Characteristics
